UK166

Technical specification

Mechanical equipment:

· Frame: MTB style ,Aluminium Alloy 6061, TIG welded,

· Fork: MTB style front Suspension fork, steel crown.

· Wheels: Alloy double wall rims, spoke wheel, 27.5 Inch

· Handlebar: Steel, handlebar with alloy stem.

· Brakes: mechanical Disk brakes with electric brake levers

· Crank sets: Forged alloy

· Hubs: Sealed bearing (front) Hub motor (rear)

· Saddles: Alloy MTB style flat

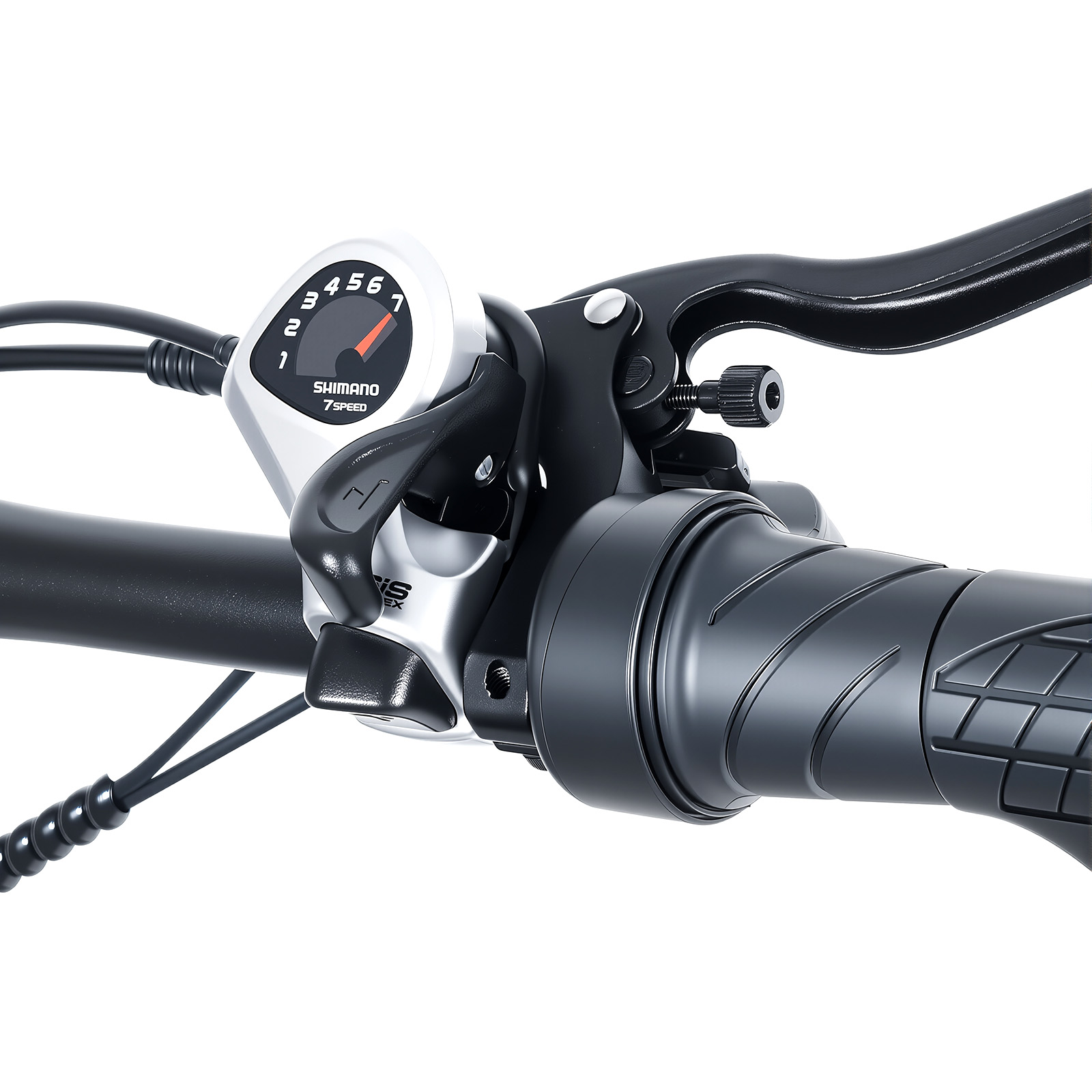

· Gears: Shimano 7 speed

· Rear Derailleur: Shimano Tourney.
Electric Transmission:

· Motor: Brushless 48V 500 Watt.

· Battery : Lithium Ion , LG brand cells 25 AH

· Drive mode: PAS & Throttle

· Maximum speed: Speed locked to 25KM /Hour.

· Charging time: Up to 6 Hours

· Distance per charge: 60 -80 KM / subject to road condition, riders weight and drive mode.

Additional features:

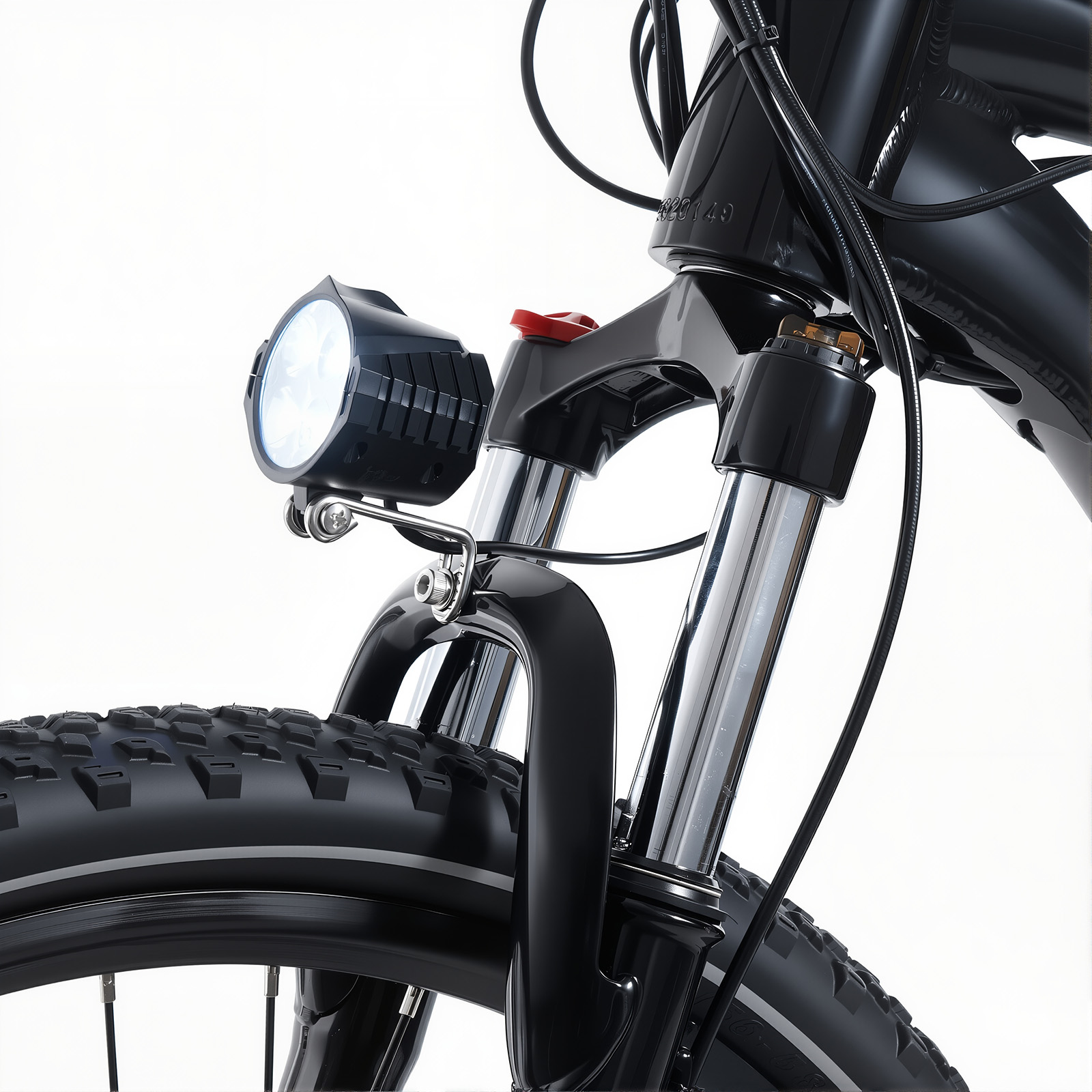

· - Front indicator and back lights for road safety

· -Special designed seat for extra comfort

· -Top tube extra battery mountable frame

· -Kick stand for parking

· -Built in lock rear wheel

· -key less start fob key on and off
