Fat tyre Ebike for commuting and touring:

Technical specification

Mechanical equipment:

· Frame: Special designed frame motor bike style , Steel frame .TIG welded,

· Fork: Suspension front fork, steel.

· Wheels: Fat Tyre wheels, 20” X 4.0”, Double wall.

· Handlebar: Steel, handlebar raised

· Brakes: mechanical Disk brakes with electric brake levers

· Crank sets: Forged alloy

· Hubs: Sealed bearing (front) Hub motor (rear)

· Saddles: Alloy MTB style flat

· Gears: Shimano 7 speed

· Rear Derailleur: Shimano Tourney.
Electric Transmission:

· Motor: Brushless 48V 500 Watt.

· Battery : Lithium Ion , LG brand cells 10 AH

· Drive mode: PAS & Throttle

· LCD Display screen with speed variation

· Maximum speed: Speed locked to 25KM /Hour.

· Charging time: Up to 6 Hours

· Distance per charge: 35 -50 KM / subject to road condition, riders weight

Additional features:

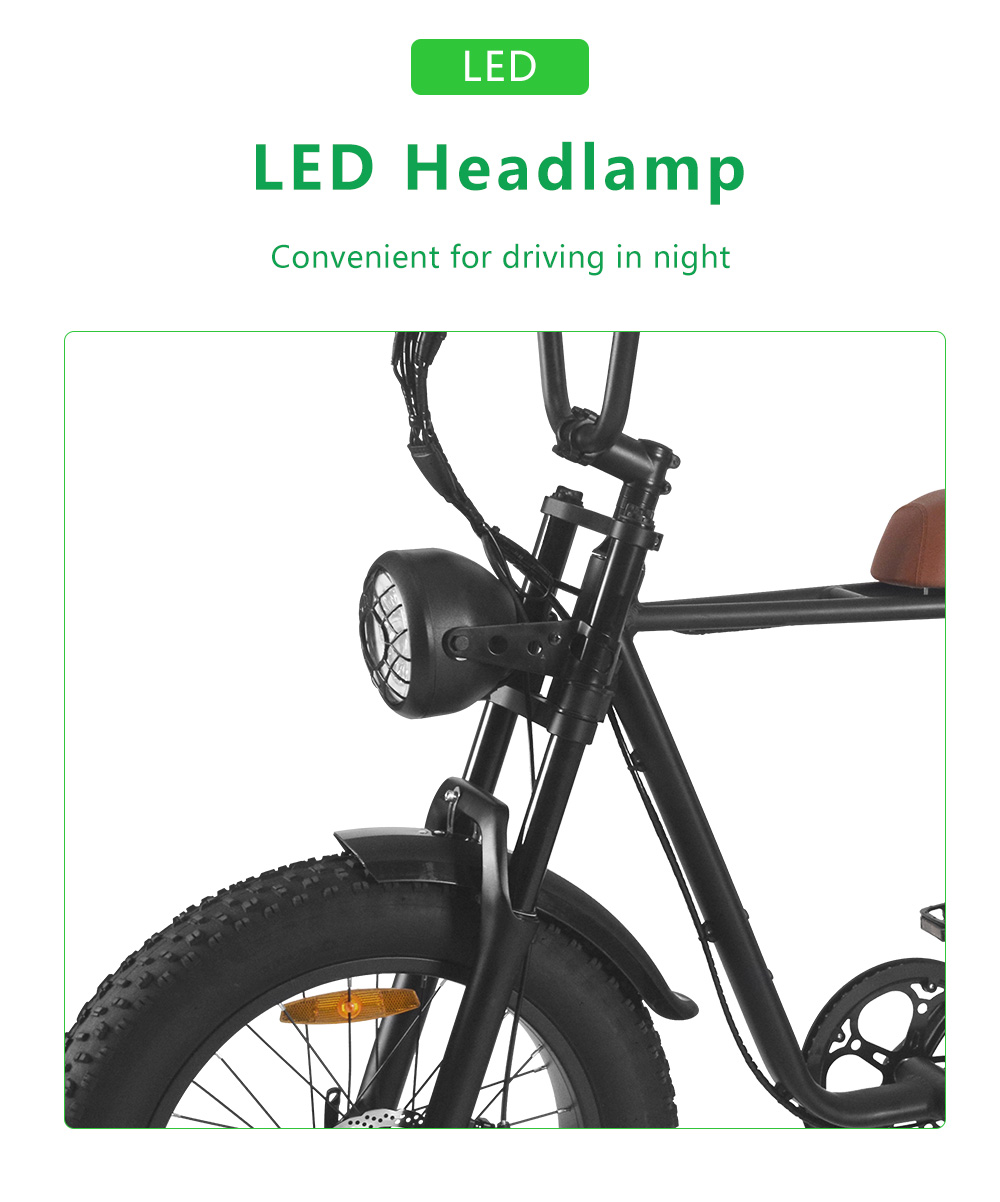

· - Front head lamp and back lights for road safety

· -Special designed seat for extra comfort

· -Kick stand for parking

· Excellent for country side, sea side and commuting.
